Jiafu rubber floor

Non standard customized arbitrary tailoring

1、Products use high quality rubber material：ESD function stable.

2、Thermostability：soft in all year/no contract.
3、Color stable：wear resisting and good elasticity、no peculiar smell.
4、Exceed standard EU ROSH：environmental protection and comfortable.

5、Aroound the product is suitable for electronics industry.

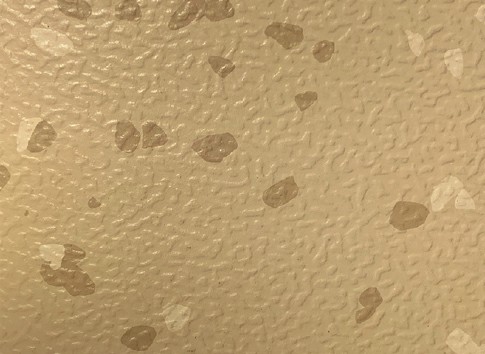

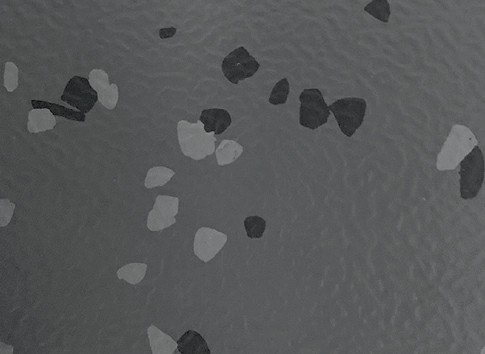

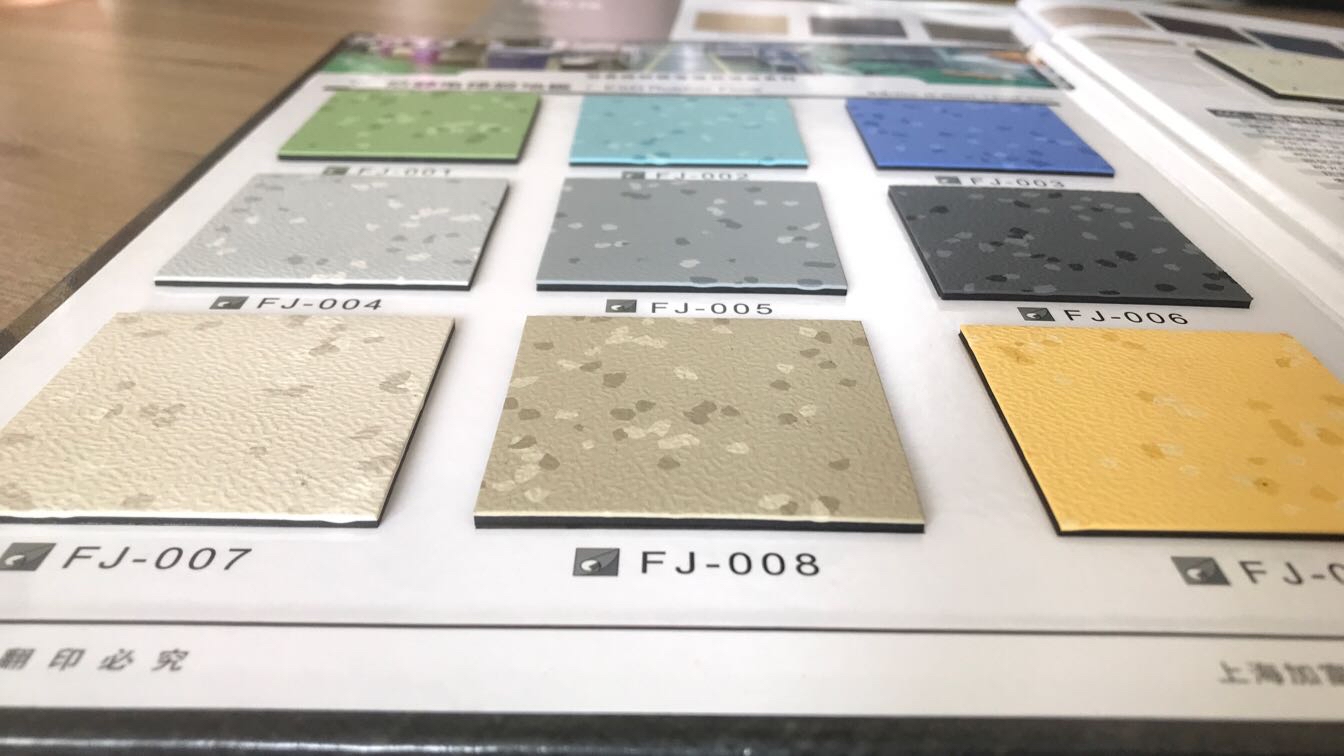

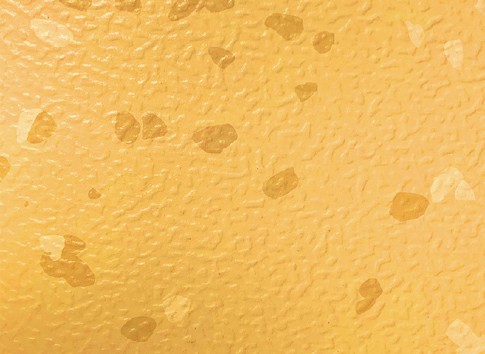

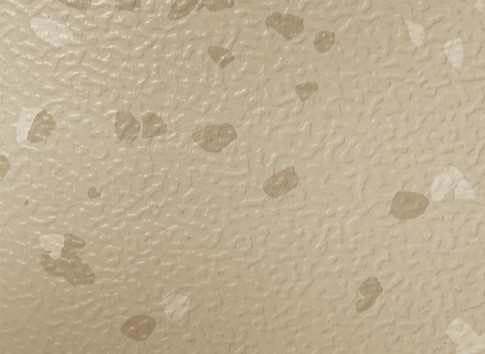

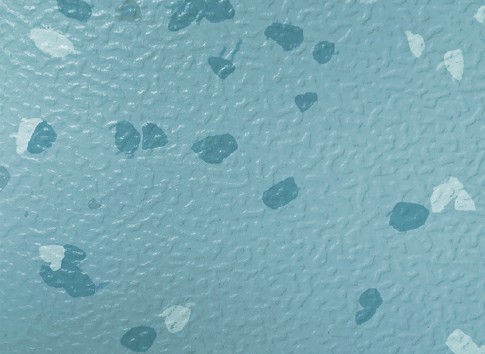

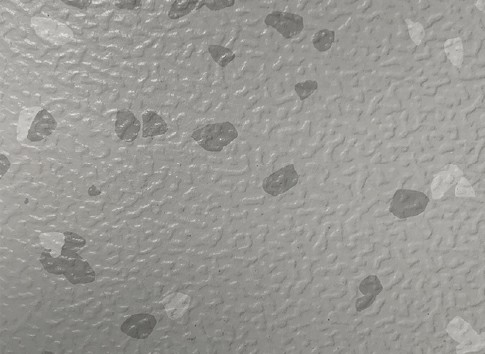

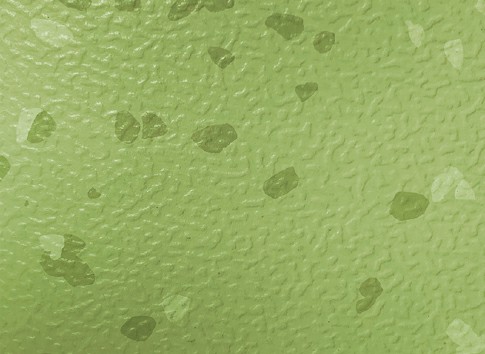

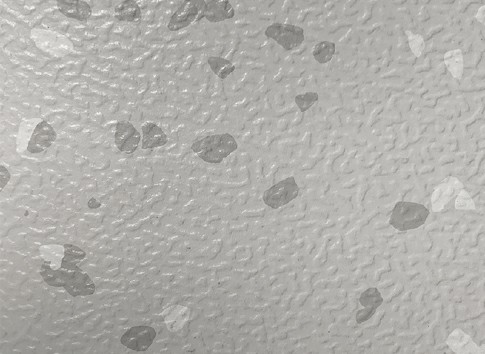

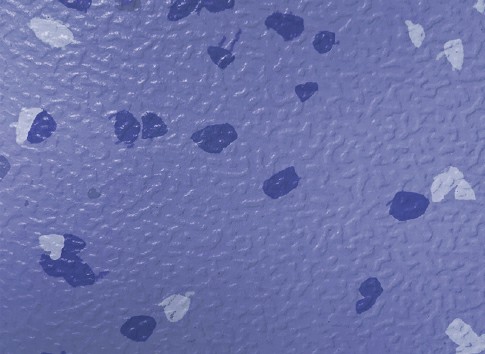

ESD Rubber Floor

Product features：

Specification of Jiafu brand ESD floor mats

Test item	Standard request	Measured value
Hardness(Glenn Schorr·A)	≥75A	80A
Tearing strength	≥25 KN/m	30KN/m
Tensile strength	≥9 KN/m	10KN/m
Heat size variability	≤±0·4%	-0·12%
Compression set	≤0.2mm	0.09mm
Resistance of cigarette clcination	No burn marks	No burn marks
Resistance to chemical pollution	No surface change	No surface change
The light resistance	≥Grey card grade 3	Level 3
Resistance to bending performance	Φ220mmBending of metal bar 180° No crack	No crack
Surface Layer(Dissapation Layer)	10^6-9Ω	10^6-7Ω
Bottom Layer(Conducting Layer)	10^3-5Ω	10^3-5Ω
Elongation	200%	350%
Surface Layer Abrasion	≤250 mm3	200 mm³
Adhesion strength between solid layer and buffer layer	≥20MPA	30

RSuggestions on storage, transportation and laying of rubber flooring

1、Rubber floor in the ambient temperature below 5℃, as far as possible to avoid handling uncoiling or rolling material.
2、Rubber floor rolls should be placed vertically in the direction indicated
3、48 hours before the laying of rubber floor rolls,please store the rolls indoors at least 15℃,and the minimum temperature for laying shall not be less than 10℃.
4、The highest indoor temperature is recommended not to exceed 38℃.
5、24 hours before the formal laying of rubber floor coils, please make pre-laying adjustment according to the laying serial number.
6、Lay and install in the same area in strict accordance with the laying serial number on the coil label.
7、Adhesive used for laying and installing rubber floor rolls, please select the adhesive with high shear strength.
